Kinesis Role-Based Access

This article demonstrates how ClickPipes customers can leverage role-based access to authenticate with Amazon Kinesis and access their data streams securely.

Introduction​

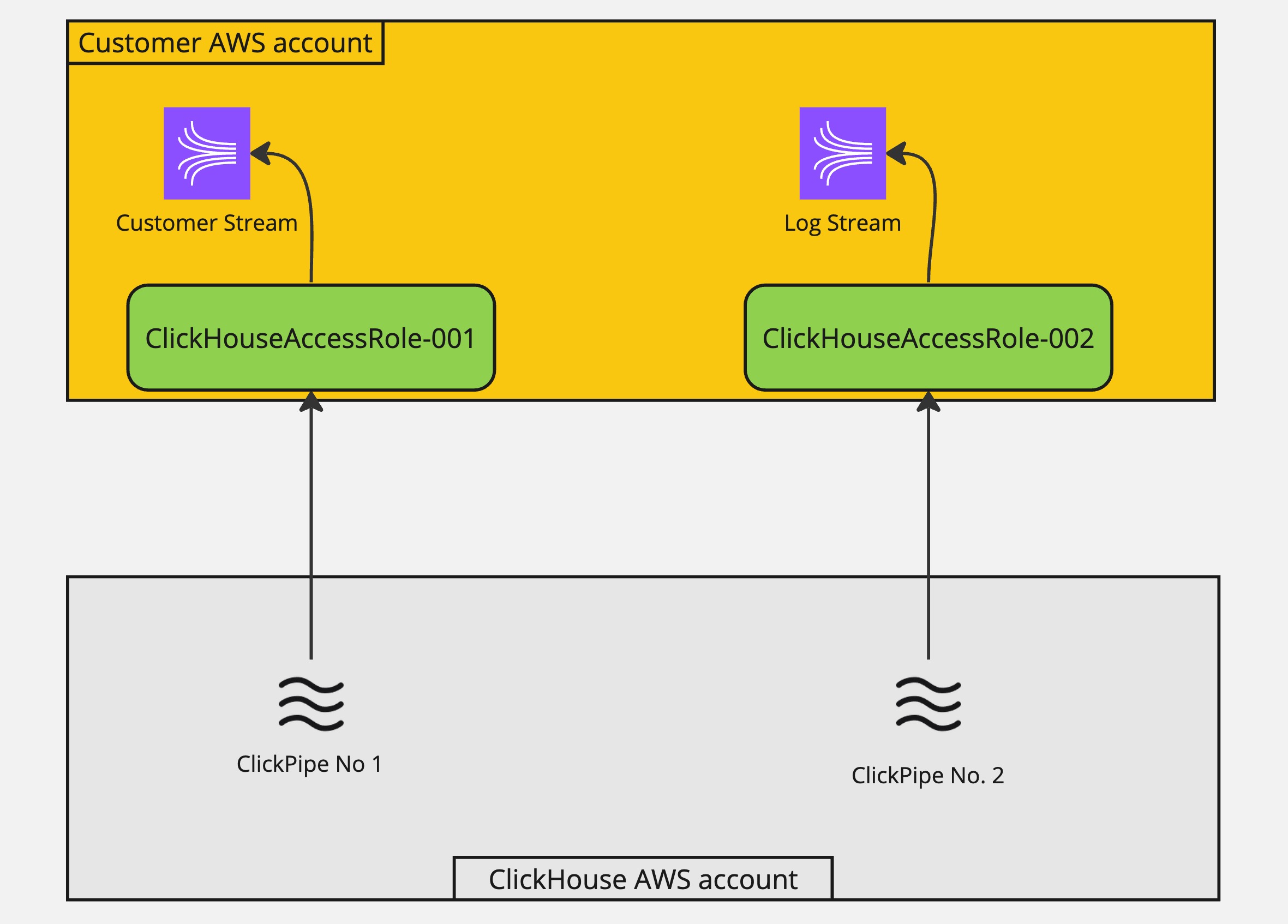

Before diving into the setup for secure Kinesis access, it's important to understand the mechanism. Here's an overview of how ClickPipes can access Amazon Kinesis streams by assuming a role within customers' AWS accounts.

Secure Kinesis

Using this approach, customers can manage all access to their Kinesis data streams in a single place (the IAM policy of the assumed-role) without having to modify each stream's access policy individually.

Setup​

Obtaining the ClickHouse service IAM role Arn​

1 - Login to your ClickHouse cloud account.

2 - Select the ClickHouse service you want to create the integration

3 - Select the Settings tab

4 - Scroll down to the About this service section at the bottom of the page

5 - Copy the IAM Role value belong to the service as shown below.

s3info

Setting up IAM assume role​

Manually create IAM role.​

1 - Login to your AWS Account in the web browser with an IAM user that has permission to create & manage IAM role.

2 - Browse to IAM Service Console

3 - Create a new IAM role with the following IAM & Trust policy. Note that the name of the IAM role must start with ClickHouseAccessRole- for this to work.

Trust policy (Please replace {ClickHouse_IAM_ARN} with the IAM Role arn belong to your ClickHouse instance):

IAM policy (Please replace {STREAM_NAME} with your Kinesis stream name):

4 - Copy the new IAM Role Arn after creation. This is what needed to access your Kinesis stream.
